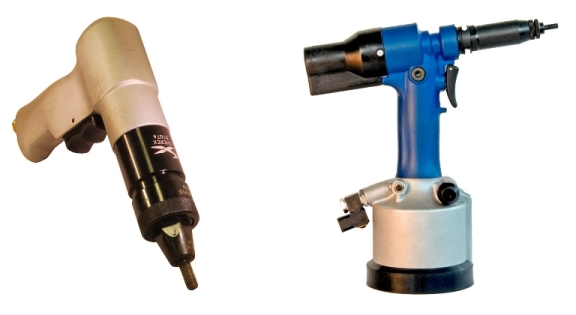

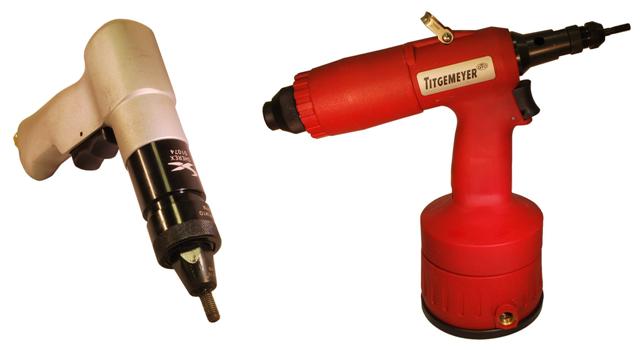

Pneumatic Rivet Nut Installation Tools

Pneumatic Rivet Nut Installation Tools are ideal for high-volume projects and applications. They allow for a faster rivet nut insertion process, and their use reduces operator fatigue that can often be associated with use of manual tools. They require a source of compressed air for operation. These tools can be successfully deployed in a wide range of industrial applications. JHP Fasteners offers a wide range of pneumatic rivet nut installation tools, all of which are constructed from high quality materials to ensure optimum performance and reliability.

JHP Fasteners offers the following types of pneumatic rivet nut installation tools:

Spin/Spin Tools:
An economical choice for thin-walled rivet nuts. These tools are lightweight and easy to operate. This type of tool spins the mandrel to thread the nut. Once the nut has been threaded, the mandrel is spun again to collapse the nut. The spin/spin type is offered in three configurations.

Depending on configuration selected, the following max rivet nut sizes would apply:

#10-32 (M5) max
1/4-20 (M8) max
1/2-13 (M12) max

Several of the spin/spin tools can be equipped with a right angle attachment to facilitate access to hard-to-reach locations. The use of an air regulator, air filter, and lubrication system is recommended to minimize the wear of internal components over the life of the tool.

Spin/Pull Tools:
These tools are available in “Pull-to-Pressure” or “Pull-to-Stroke” variants. The tool spins the mandrel to thread the nut and then pulls the mandrel to collapse the nut. The tool will pull to either a set pressure or a set stroke.

JHP Fasteners offers the following models of these spinull tools:

Flex-5P: Pull to pressure version.
Flex-5P-IL: Pull to pressure “inline” version.
Flex-5S: Pull to stroke version.
Flex-5S-IL: Pull to stroke “inline” version

Typical features and characteristics:

Will handle rivet sizes ranging from #6-32 to 3/8-16 and M3 to M10
Single stage trigger
Auto reverse with manual reverse bypass
Quick change mandrel
Mandrel is an economic, readily available, socket head cap screw
pulling force @ 90 PSI
2 to 3 second cycle time
Weight = 4.2lbs

Each of the tools listed above provide a high-speed and ergonomically friendly approach to rivet nut installation, and are well suited for use within any production environment. Their solid construction ensures high reliability within even the most challenging environments.

We invite you to take advantage of our broad range of industry experience and expertise. Based on your input, we will be able to provide you with expert guidance on the choice of the most appropriate type of tooling to meet the requirements of your specific project or application. Excellent customer service, a broad product offering, and competitive pricing are just a few of the tangible benefits of doing business with JHP Fasteners.
