Dual Rib Projection Tab Weld Nut

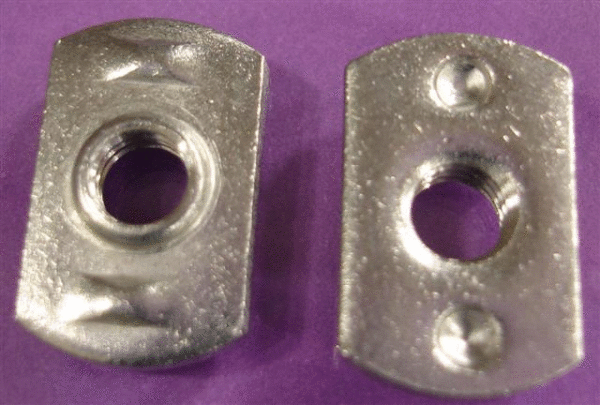

This Tab Projection Weld Nut features a pair of equally dimensioned rib projections located on both sides of the threaded hole. This feature ensures equally distributed strength across the entire surface of the weld. This weld nut is ideally suited for use within automated assembly processes due to the tight tolerances of its self-locating pilot. These industrial fasteners are available from Monroe-JHP Fasteners in a wide variety of materials and thread sizes (inch and metric).


Typical Properties of the Tab Projection Weld Nut


  • C1010 high-welding quality low Carbon Steel (plain finish unless otherwise specified)
  • 18-8 Stainless Steel (passivated finish)


  • Inch: Unified Standard Class 2B ASME B 1.1-2003
  • Metric: ASME B 1.13M-2005

Available thread sizes

  • Thread-(inch) Thread (mm)
    • #6-32* M3.5 x 0.6*
    • #8-32 M4 x 0.7
    • #10-24 M5 x 0.8
    • #10-32 M6 x 1.0
    • 1/4-20 M8 x 1.25
    • 1/4-28 M12 x 1.75*
    • 5/16-18
    • 5/16-24
    • 3/8-16
    • 3/8-24
    • 1/2-13

* These sizes are not available in Stainless Steel

Note: A variety of widths, lengths, and thicknesses also available.

Application notes

This Tab Projection Weld Nut is equipped with a self-locating pilot to assist with initial thread engagement. The pilot also prevents shunting of the projections onto the threads, thereby eliminating the necessity for any post-weld thread re-tapping. The tight tolerances of the pilot facilitates rapid feeding of the weld nut into its designated hole location. The nut has sufficient thread depth to ensure a strong thread engagement.

This Tab Projection Weld nut is a common choice within the design of a wide range of metal products. It is well suited for automated assembly processes, and can therefore significantly reduce overall production costs.

Monroe-JHP Fasteners offers expert consultation on the use of these types of industrial fasteners. In addition to our industry expertise we will provide you with outstanding customer service, competitive pricing, and dependable product delivery times.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
