Tab Weld Studs

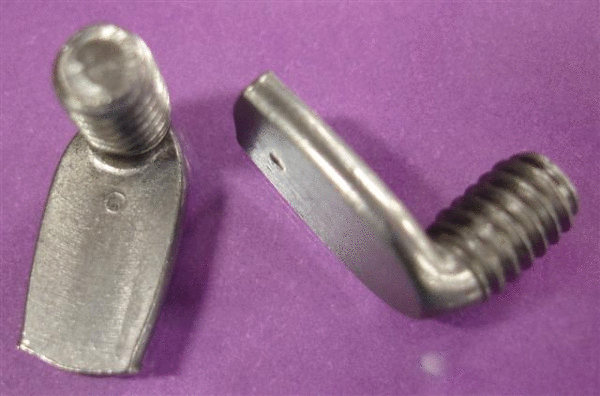

This Spot Weld Stud features a narrow flat spade positioned at a right angle to the screw’s threads. This design feature allows the weld screw to be welded to or through a metal surface. The narrow spade design also allows the screw to be effectively welded within narrow channels and other confined spaces. These industrial fasteners are available from Monroe-JHP Fasteners in a variety of materials, dimensions and thread sizes (inch and metric).


Typical Properties of this Spot Weld Stud

Weld Stud Materials:

  • C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
  • 18-8 Stainless Steel (passivated finish)


  • Inch: Unified Standard Class, 2A ASME B 1.1-2003
  • Metric: ASME B 1.13-2005

Available Thread Sizes:

  • Inch Metric
    • #6-32 M3.5 x 0.6
    • #8-32 M4 x 0.7
    • #10-24 M5 x 0.8
    • #10-32 M6 x 1.0
    • 1/4-20 M8 x 1.25
    • 5/16-18 M10 x 1.5
    • 3/8-16

Note: A variety of dimensional characteristics also available (lengths, heights, etc)

Application Notes for Spot Weld Studs

The spade head on this spot weld screw can be welded to, or through, a metal surface. The spade will accommodate a variety of electrode tip sizes and can be welded using welding equipment used in any standard welding process. No special tooling or fixturing is required. This weld screw is ideally suited for use within confined spaces.

For applications that require a robust weld screw that can be effectively attached within a confined space, this unique spot weld screw is an excellent choice. The fact that it can be welded to, or through, a metal surface enhances its overall versatility.

JHP Fasteners has 40 years of experience in the industrial fastener business. We carry a full suite of industrial fastener products and pride ourselves on our ability to stay abreast of all industry trends and developments.

We offer our customers:

  • Competitive pricing
  • Fast and reliable delivery performance
  • Expert consultation
  • Friendly customer service

Contact JHP Fasteners for Spot Weld Studs Today

Contact us for more information on our tab weld studs, we will work hard to win, and retain your business!
