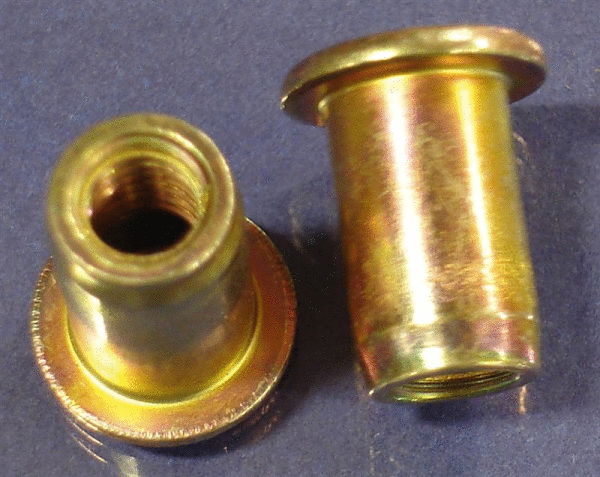

Rivet Nut, Large Flange, Smooth Body

The large flange European style rivnut is a good choice for use in applications that require increased strength and improved containment of round or oversized holes. They are easy to install and require no special tooling or expertise. These industrial fasteners are offered by Monroe-JHP Fasteners in a wide variety of materials and thread sizes.


Typical Properties of European Style, Large Flanged Rivet Nuts:

  • Material: Your choice of:
    • Steel (finished in Zinc Plate-Yellow Dichromatic DIN 50961 Fe/Zn 8, C)
    • Aluminum (plain finish)
    • 304 Stainless Steel (plain finish)
    • 316 Stainless Steel (finished in Zinc Plate-Yellow Dichromatic DIN 50961 Fe/Zn 8, C) Note: Special finishes or materials available upon request. Note: 316 Stainless Steel has superior corrosion resistance and is well suited for use in the medical, chemical, and food industries.
  • Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.
  • Available styles: Closed-end versions available in M4, M5, M6 and M8.
  • Available thread sizes and diameters
    • Thread-Metric Diameter (mm)
      • M3 x 0.5* ** 5.0
      • M4 x 0.7** 6.0
      • M5 x 0.8 7.0
      • M6 x 1.0 9.0
      • M8 x 1.25 11.0
      • M10 x 1.5** 12.4
      • M12 x 1.75* ** 16.0

* Not available in 304 Stainless Steel
** Not available in 316 Stainless Steel

Note: A variety of nutserts lengths also available.

Application Notes for Large Flange, Metric Rivets:

  • The grip range of these rivet nuts can be affected by the type of sheet material being used. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application.
  • Installation of the large flange European style nutsert is accomplished via use of hand tools that can be pneumatic, hydraulic, or manual. The installation process is simple, easily controlled, and less labor intensive that other processes associated with nuts and bolts.
  • The closed-end version of these nutserts will effectively seal the back end of the nut and provide a barrier against external contaminates.

These rivnuts are easy to use and extremely versatile. If you have questions regarding which style of rivet nut to use for your application, JHP Fasteners will be able to assist you in the selection of a nut that will satisfy your requirements. Once you make your selection, we will provide you with competitive pricing and a reliable delivery time.
