Arc Weld Pins – Inch / Metric

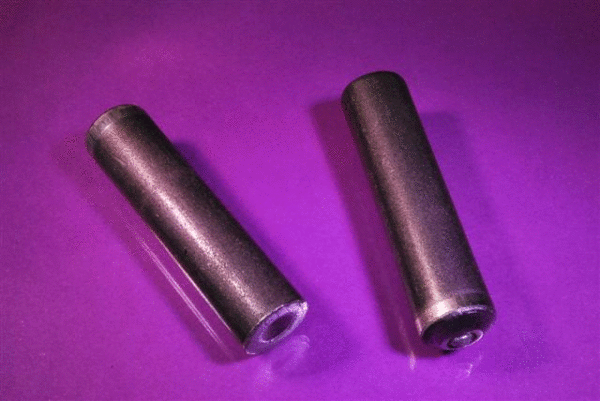

The Arc Weld Pin is a non-threaded, plain shank stud, designed for use within a standard arc welding process. The weld pin is flux-loaded at the weld end to facilitate the welding process. These devices are used in broad range of industrial applications. These industrial fasteners are available from Monroe-JHP Fasteners in a variety of materials and dimensions (inch and metric).


Typical Properties of this Arc Weld Pin:

Weld Pin Materials

Your choice of Mild Steel or Stainless Steel

Available Arc Pin Diameters

  • Inch: 1/4", 5/16”, 3/8”, 1/2", 5/8”, 3/4"
  • Metric: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm

Note: A wide variety of pin body lengths also available.

Arc Weld Pin Application Notes

The arc weld pin is attached using standard arc welding techniques. A weld gun lifts the weld pin away from the base metal surface while a power source generates a controlled electric arc. The electric arc melts the end of the pin as well as a portion of the base metal. The weld pin is then forced into the molten metal. This process creates a high-quality weld joint. During the arc welding process, a small portion of the weld pin will be burned away. Therefore, the post-weld pin length will be slightly shorter than the pre-weld length. This fact should be taken into consideration when selecting an appropriate pin length.

The arc weld pin has a variety of industrial applications. Its sturdy design and ease-of-use make it a popular choice among the industrial design community.
