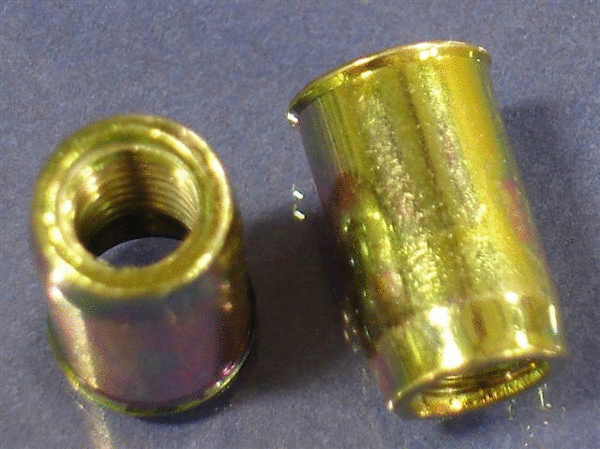

Smooth Body, Small Flanged Rivet Nut

The small flange European style rivet nut provides a near-flush installation and is suitable for use in a wide range of sheet materials. They are easy to install and require no special tooling or expertise. These industrial fasteners are offered by Monroe-JHP Fasteners in a wide variety of materials and thread sizes.



Typical Properties of European Style, Small Flanged Rivet Nuts:

  • Material: Your choice of:
    • Steel (finished in Zinc Plate-Yellow Dichromatic DIN 50961 Fe/Zn 8, C)
    • Aluminum (plain finish)
    • 304 Stainless Steel (plain finish)
    • 316 Stainless Steel (finished in Zinc Plate-Yellow Dichromatic DIN 50961 Fe/Zn 8, C) Note: Special finishes or materials available upon request. Note: 316 Stainless Steel has superior corrosion resistance and is well suited for use in the medical, chemical, and food industries.
  • Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.
  • Available styles: Closed-end versions available in M4, M5, M6 and M8.
  • Available thread sizes and diameters
    • Thread-Metric Diameter (mm)
      • M4 x 0.7** 6.0
      • M5 x 0.8 7.0
      • M6 x 1.0 9.0
      • M8 x 1.25 11.0
      • M10 x 1.5* ** 12.4

* Not available in Aluminum, 304 Stainless Steel, or 316 Stainless Steel
** Not available in 316 Stainless Steel

Note: A variety of riv nut lengths also available.

Small Flange Metric Rivet Application Notes:

  • The grip range of these rivet nuts can be affected by the type of sheet material being used. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application.
  • Installation of the small flange European style rivnut is accomplished via use of hand tools that can be pneumatic, hydraulic, or manual. The installation process is simple, easily controlled, and less labor intensive that other processes associated with nuts and bolts. When properly inserted, the nut will be near flush with the surrounding parent material.
  • The closed-end version of these riv nuts will effectively seal the back end of the nut and provide a barrier against external contaminates.

The small flange rivnut has many practical applications and is a common choice when a near-flush insertion is desirable. Selection of the appropriate type of industrial fastener can have a significant impact on the reliability and durability of your product. JHP Fasteners will actively engage with you to ensure that you have all the information needed to make an informed product selection.

Contact JHP Fasteners for Your Small Flange, Metric Rivet Nut Needs

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
