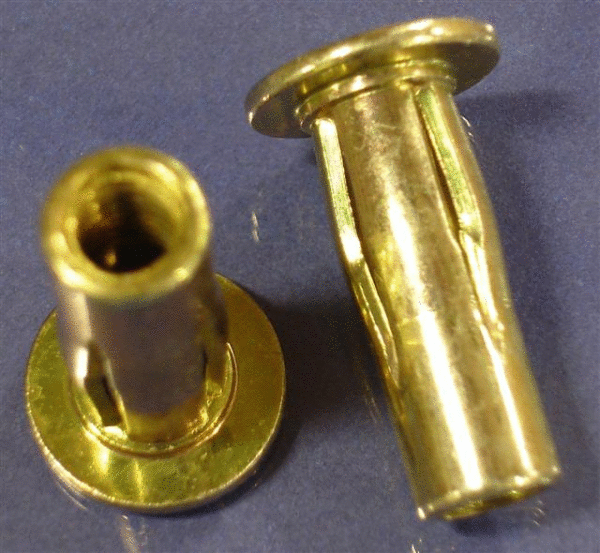

Blind Rivet Nut, Pre-Bulbed & Slotted Body

Pre-bulbed, slotted-body blind rivet nuts provide superior pull-out resistance in plastics as well as thin sheet metals. Their shoulder provides an excellent self-locating feature, and their surface finish provides outstanding corrosion resistance. These industrial fasteners are offered by Monroe-JHP Fasteners at competitive pricing and rapid delivery times.



Typical Properties of Pre-Bulbed, Slotted-Body Nutserts:

  • Material: Steel (finished in Zinc Plate-Yellow Dichromatic ASTM B633 Fe/Zn 8, Type II) Note: Special finish or material available upon request.
  • Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.
  • Available thread sizes:
    • Thread-Inches Thread-Metric
      • #10-24 M5 x 0.8
      • #10-32 M6 x 1.0
      • 1/4-20 M8 x 1.25
      • 5/16-18

Application Notes for Pre-Bulbed, Slotted-Body Rivnuts:

  • Grip range can be affected by sheet material and hole size. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application.
  • These riv nuts are easily installed via use of hand tools that can be pneumatic, hydraulic, or manual. There is no special tooling required. The pre-bulbed design reduces the amount of installation force required when compared to straight shank designs. The rivet nut’s shoulder provides a self-location feature that helps facilitate insertion.

The pre-bulbed, slotted-body rivet nut will provide excellent performance in thin sheet metals as well as plastic materials. They can effectively reduce your assembly costs by helping to minimize your use of loose hardware and increasing your overall assembly speed.

JHP Fasteners can satisfy all of your industrial fastener needs. We can help you select the type of fastener that will be most appropriate for your product or application and will then provide you with a price quote that will be difficult to beat.

Contact JHP Fasteners for Slotted-Body, Pre-Bulbed Rivnuts!

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
