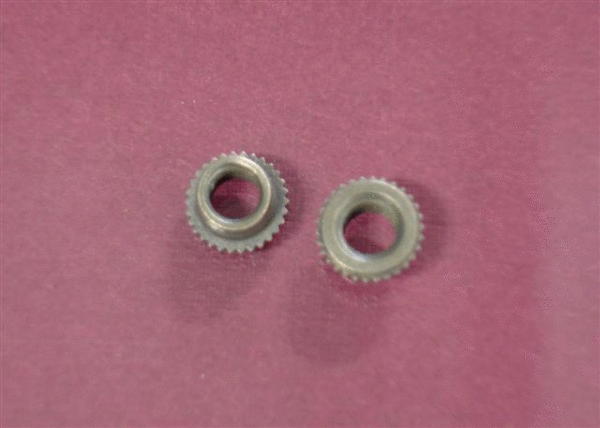

Miniature Self-Clinching Nuts

The self-clinching fastener with non-locking threads will provide you with strong threads in a relatively small space. These industrial fasteners are directly interchangeable with applicable industry standards. Monroe-JHP Fasteners can offer these self-clinching fasteners to you at pricing levels that are very competitive.


Self-Clinching Fasteners with Non-Locking Threads Properties:

Material: 303 stainless steel (finished per Passivated ASTM A380).

Thread: Non-locking class 2B MIL-S-7742 6H ISO metric.

Suitable for use in: Materials with Rockwell Hardness of B-70 or less.

Miniature Self Clinching Thread Sizes:

  • Inches:
    • #4-40
    • #6-32
    • #8-32
    • #10-32
    • 1/4-20
    • 1/4-28
  • Metric
    • M3 x 0.5
    • M4 x 0.7
    • M5 x 0.8
    • M5 x 1.0

Mini Self Clinching Nut Application notes:

Insertion of these self-clinching fasteners is a straightforward process and can be accomplished via a manual press or via the use of an automated hydraulic press. Depending on thread size and sheet material, an insertion force of between 900 and 3,500 lbs. will be required. These fasteners are ideally suited for automated insertion processes, which can save time and money compared to manual processes.

Depending on thread size and sheet material (cold-rolled steel or 5052-H34 aluminum), a push-out performance of between 88 and 420 lbs. will be attained. Torque-out will be between 10 and 70.

If your product or application requires an industrial fastener that provides strong non-locking thread performance within a minimum amount of space, then JHP Fasteners recommends that you consider the use of a self-clinching fastener with non-locking threads. These self-clinching fasteners are widely applied in a broad range of industrial and commercial applications.

Contact Us for Self Clinching Miniature Nuts

If you have any uncertainty as to which type of industrial fastener would provide you with the best relationship between performance and cost, JHP fasteners will give you objective and unbiased recommendations based on our 40 years of industry experience. We will work hard to ensure that your selection will be the correct one.

Contact us today and let's start discussing your project requirements!
