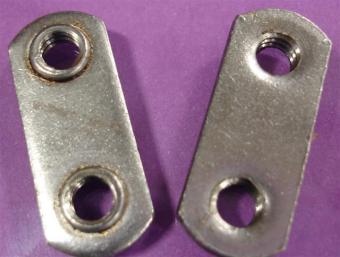

Twin Pilot Spot Weld Nut

This Tab Spot Weld Nut features two tapped holes that are equally dimensioned on the body of the nut and is a good choice for products or applications that require the flexibility of having a pair of tapped holes available on a single fastener. These industrial fasteners are offered by Monroe-JHP Fasteners in a wide range of thread sizes and at very competitive pricing.


Typical Properties of the Tab Spot Weld Nut


C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified).


Unified Standard Class 2B ASME B 1.1-2003

Available thread sizes:

  • Thread
    • #6-32
    • #8-32
    • #10-24
    • #10-32
    • 1/4-20
    • 5/16-18
    • 3/8-16

Note: A variety of thicknesses, lengths, widths, and pilot diameters also available.

Application notes:

The wide variety of dimensions available on this Tab Spot Weld Nut ensures that you will be able to find a nut that will meet your specific requirements. This weld nut is production-friendly and requires no custom tooling or equipment.

This Tab Spot Weld Nut is a good choice for those applications that require a weld nut equipped with a pair of equally dimensioned tapped holes. It combines cost-effectiveness with flexibility of use and can be used in most any type of production environment.

Monroe-JHP Fasteners offers expert consultation on the use of these types of industrial fasteners. If you are unsure as to which type of weld nut would best serve your needs, we can help guide you in the right direction. Once you make a product selection, you will find that our pricing and overall customer service are second-to-none.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
