CD Weld Tapped Pads - Inch / Metric

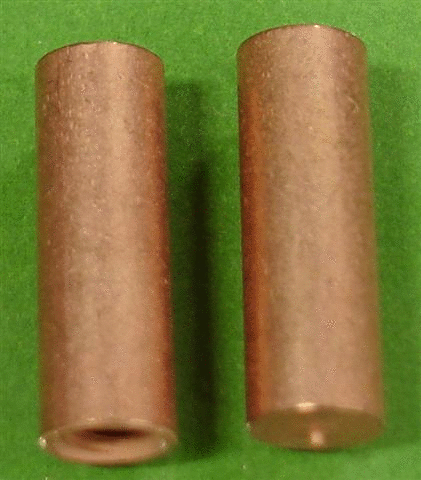

A capacitor discharge (CD) Tapped Pad or CD Weld Standoff is an extremely versatile device that can be used in a wide range of commercial and industrial applications. This weld fastener features a smooth exterior surface combined with a threaded interior. These industrial fasteners are available from Monroe-JHP Fasteners in a variety of materials, dimensions, and thread sizes (inch and metric).


Typical Properties of the Tapped Pad

Weld Standoff Materials

Your choice of Mild Steel or Stainless Steel

Weld Standoff Thread Sizes

  • Inch Metric (mm)
    • #6-32 M3*
    • #8-32 M4
    • #10-24** M5
    • #10-32
    • #4-40
    • 1/4”**
    • 3/8-16

* Not available in stainless steel ** Not available in mild steel Available Body Diameters: Mild Steel Stainless Steel 1/4" 5/32” 5/16” 1/4" 3/8” 9/32” 1/2" 5/16” 5mm 3/8” 6mm 1/2" 7mm 6mm 8mm 8mm

Note: A variety of body lengths and thread depths also available.

Weld Standoff Application Notes

When properly welded, using the capacitance discharge method, there will be no reverse side marking. This is due to the minimal thermal impact on the material during the welding process. To achieve maximum weld performance the welding surface must be clean (no paint or coatings) and flat. Only 110v power is required for the welding process and these weld studs can be attached using standard CD welding equipment.

For applications that require a weld fastener with internal threads, this tapped pad is a common choice. It combines outstanding versatility with exceptional ease-of-use.
