Arc Collar Weld Studs – Inch / Metric

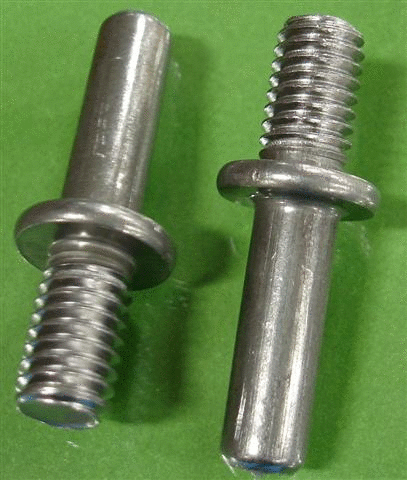

The Arc Weld Collar Stud features partial external threading that starts at a point above the stud’s collar. The collar creates an offset than can be used for mounting of mating components or for the creation of a stand-off. These studs are welded using a standard arc weld process. An arc weld process is generally used in those applications that required welding of larger diameter weld studs to thicker base metals. These studs are flux-loaded at the weld end to facilitate the welding process. These industrial fasteners are available from Monroe-JHP Fasteners in a variety of materials, dimensions, and thread sizes (inch and metric).


Typical Properties of the Collar Arc Weld Stud:

Weld Stud Materials

Your choice of Mild Steel or Stainless Steel

Standard and Metric Weld Stud Thread Sizes

  • Inch Metric (mm)
    • 1/4-20 M8
    • 5/16-18 M10
    • 3/8-16

Note: A wide variety of stud body lengths, body diameters, and collar diameters also available.

Collar Arc Weld Stud Application Notes

The arc weld collar stud is attached using standard arc welding techniques. A weld gun lifts the weld stud away from the base metal surface while a power source generates a controlled electric arc. The electric arc melts the end of the stud as well as a portion of the base metal. The weld stud is then plunged into the molten metal. This process creates a high-quality weld joint. During the arc welding process, a small portion of the weld stud will be burned away. Therefore, the post-weld stud length will be slightly shorter than the pre-weld length. This fact should be taken into consideration when selecting an appropriate stud length.

The arc weld collar stud is a good choice for those applications that require a sturdy weld stud that will serve as a stand-off, or as a device for attachment of mating components. This weld stud can be used in a wide range of industrial applications.
