CD Weld Tapped Pads / CD Weld Standoffs – In / MM

CD Weld Stand-offs (Tapped Pads)

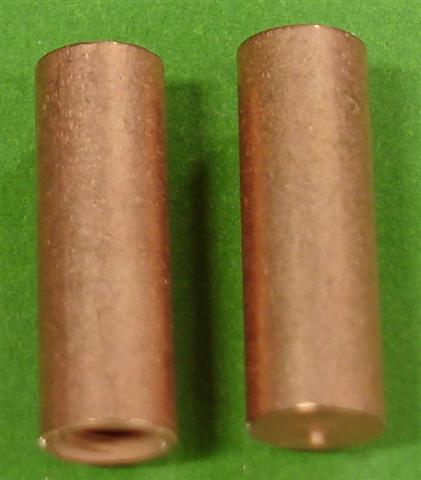

A capacitor discharge (CD) Tapped Pad is an extremely versatile device that can be used in a wide range of commercial and industrial applications. This weld fastener features a smooth exterior surface combined with a threaded interior. These industrial fasteners are available from JHP Fasteners in a variety of materials, dimensions, and thread sizes (inch and metric).

Typical properties of this Tapped Pad:

Material: Your choice of Mild Steel or Stainless Steel

Available Thread Sizes:

• Inch Metric (mm)
  • #6-32 M3*
  • #8-32 M4
  • #10-24** M5
  • #10-32
  • #4-40
  • 1/4”**
  • 3/8-16

* Not available in stainless steel ** Not available in mild steel Available Body Diameters: Mild Steel Stainless Steel 1/4" 5/32” 5/16” 1/4" 3/8” 9/32” 1/2" 5/16” 5mm 3/8” 6mm 1/2" 7mm 6mm 8mm 8mm

Note: A variety of body lengths and thread depths also available.

Application notes:
When properly welded, using the capacitance discharge method, there will be no reverse side marking. This is due to the minimal thermal impact on the material during the welding process. To achieve maximum weld performance the welding surface must be clean (no paint or coatings) and flat. Only 110v power is required for the welding process and these weld studs can be attached using standard CD welding equipment.

For applications that require a weld fastener with internal threads, this tapped pad is a common choice. It combines outstanding versatility with exceptional ease-of-use.

We invite you to take advantage of our broad range of industry experience and expertise. We will take the time to answer all your questions in full and provide you with the guidance necessary to allow you to make informed purchase decisions. Once you make a product selection, JHP Fasteners will provide you with competitive pricing and outstanding delivery performance.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business
