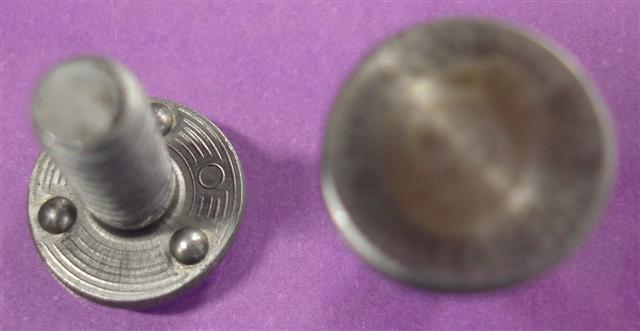

Weld Stud with 3 Projections Under the Head

Click to enlarge

Weld Screws – 3 Projections Under Flange

This Projection Weld Screw features three precision weld projections located underneath the head. This design allows for flush mounting of the weld screw onto its designated surface. The three projections are of equal height, diameter, and mass to facilitate a properly balanced and positioned weld. This weld screw is designed for through-hole applications, is self-locating, and eliminates the need for additional fixturing. These industrial fasteners are available from JHP Fasteners in a variety of materials, dimensions and thread sizes (inch and metric).

Typical properties of this Projection Weld Screw:

Material: Your choice of:

C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
18-8 Stainless Steel (passivated finish)

Threads:

Inch: Unified Standard Class 2A ASME B 1.1-2003
Metric: ASME B 1.13M-2005

Available thread sizes:

Inch Metric

#6-32 M3.5 x 0.6*
#8-32 M4 x 0.7
#10-24 M5 x 0.8
#10-32 M6 x 1.0
1/4-20 M8 x 1.25
1/4-28* M10 x 1.5
5/16-18 M12 x 1.75*
5/16-24
3/8-16
3/8-24*
1/2-13

* Not available in Stainless Steel

Note: A variety of dimensional characteristics also available (lengths, diameters, etc)

Application notes:
This projection weld screw is self-locating and provides a flush surface for easy attachment of mated components. Three symmetrical weld projections located underneath the head allow for a robust weld that will be properly positioned and well balanced. No special tooling or fixturing is required.

For applications that require a flush-mounted, through-hole, weld screw that can be easily coupled with a mated component, this projection weld screw will get the job done. Its sturdy design ensures that resulting welds will be strong, balanced, and durable.

JHP Fasteners has 40 years of experience in the industrial fastener business. We carry a full suite of industrial fastener products and pride ourselves on our ability to stay abreast of all industry trends and developments.

We offer our customers….

Competitive pricing
Fast and reliable delivery performance
Expert consultation
Friendly customer service

Product Name
6-32 Weld Stud with 3 Projections Under the Head ( 14 products )
8-32 Weld Stud with 3 Projections Under the Head ( 18 products )
10-24 Weld Stud with 3 Projections Under the Head ( 12 products )
10-32 Weld Stud with 3 Projections Under the Head ( 17 products )
1/4-20 Weld Stud with 3 Projections Under the Head ( 24 products )
1/4-28 Weld Stud with 3 Projections Under the Head ( 2 products )
5/16-18 Weld Stud with 3 Projections Under the Head ( 16 products )
5/16-24 Weld Stud with 3 Projections Under the Head ( 6 products )
3/8-16 Weld Stud with 3 Projections Under the Head ( 14 products )
3/8-24 Weld Stud with 3 Projections Under the Head ( 1 product )
1/2-13 Weld Stud with 3 Projections Under the Head ( 8 products )
M3.5 x 0.60 Weld Stud with 3 Projections Under the Head ( 8 products )
M4 x 0.70 Weld Stud with 3 Projections Under the Head ( 16 products )
M5 x 0.80 Weld Stud with 3 Projections Under the Head ( 15 products )
M6 x 1.00 Weld Stud with 3 Projections Under the Head ( 18 products )
M8 x 1.25 Weld Stud with 3 Projections Under the Head ( 13 products )
M10 x 1.50 Weld Stud with 3 Projections Under the Head ( 10 products )
M12 x 1.75 Weld Stud with 3 Projections Under the Head ( 3 products )

Displaying 1 to 18 (of 18 products)

Result Pages: 1
