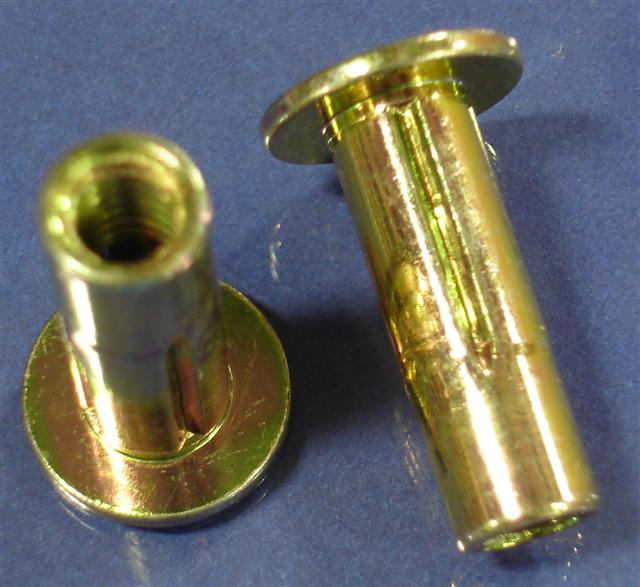

Rivet Nut, Straight Shank & Slotted Body

Click to enlarge

Rivet Nuts – Straight Shank Slotted Body

Straight-shank, slotted-body rivet nuts provide superior pull-out resistance in plastics as well as thin sheet metals. Installation is quick and simple, and their surface finish provides outstanding corrosion resistance. These industrial fasteners are offered by JHP Fasteners in a variety of thread sizes (inch and metric).

Typical properties of the straight-shank, slotted-body rivet nut:

Material: Steel (finished in Zinc Plate-Yellow Dichromatic ASTM B633 Fe/Zn 8, Type II) Note: Special finish or material available upon request.
Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.
Available thread sizes:
- Thread-Inches Thread-Metric
  - #10-24 M5 x 0.8
  - #10-32 M6 x 1.0
  - 1/4-20 M8 x 1.25
  - 5/16-18

Application notes:

Grip range can be affected by sheet material and hole size. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application.
These rivet nuts are easily installed via use of hand tools that can be pneumatic, hydraulic, or manual. There is no special tooling required. The straight-shank design uses a smaller mounting hole than that required for the pre-bulbed version.

The straight-shank, slotted-body rivet nut will provide excellent performance in thin sheet metals as well as plastic materials. They can effectively reduce your assembly costs by helping to minimize your use of loose hardware and increasing your overall assembly speed. Their surface finish is also highly resistant to corrosion.
