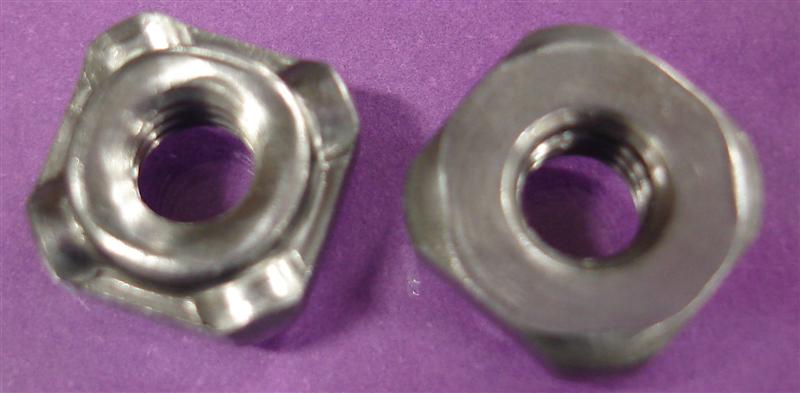

5/16-24 Piloted Square Four Projection Weld Nut
5/16-24 Piloted Square Four Projection Weld Nut
Click to enlarge
Product Files
Related Files:
JP20-JPDEK.pdf
*Please select the quantity for each item you wish to order and click the 'Add To Cart' button below.
Filter Options
Type:
Square
Material:
Steel
Barrel or Pilot Dia:
0.469
Barrel or Pilot Ht:
0.067
0.099
Width (Dia):
0.5565
Thread:
5/16-24
Model
Thread
Type
Material
Barrel or Pilot Dia
Barrel or Pilot Ht
Width (Dia)
Length
Thickness* Height
Price
Add Qty.
JP 2007-1
5/16-24
Square
Steel
0.469
0.067
0.5565
N/A
0.2185
RFQ
JP 2007
5/16-24
Square
Steel
0.469
0.099
0.5565
N/A
0.2185
RFQ
Displaying
1
to
2
(of
2
products)
Result Pages:
1
