Arc Weld Pins – Inch / Metric

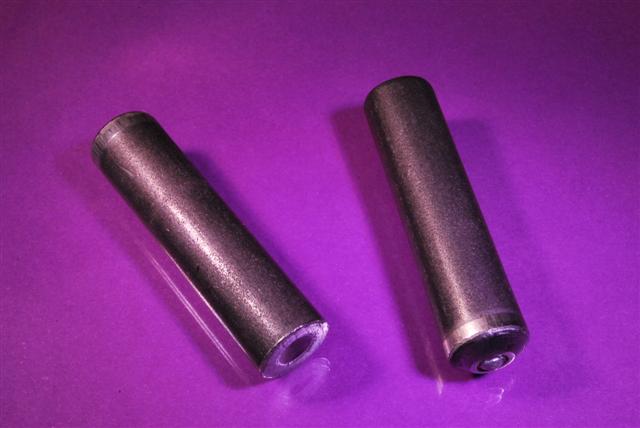

The Arc Weld Pin is a non-threaded, plain shank stud, designed for use within a standard arc welding process. The weld pin is flux-loaded at the weld end to facilitate the welding process. These devices are used in broad range of industrial applications. These industrial fasteners are available from JHP Fasteners in a variety of materials and dimensions (inch and metric).

Product Name
0.25 Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
0.3125 Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
0.375 Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
0.500 Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
0.625 Arc Weld Pins - Inch / Metric
( 12 products )
View Details Button
0.750 Arc Weld Pins - Inch / Metric
( 12 products )
View Details Button
10mm Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
12mm Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
16mm Arc Weld Pins - Inch / Metric
( 12 products )
View Details Button
20mm Arc Weld Pins - Inch / Metric
( 12 products )
View Details Button
6mm Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
8mm Arc Weld Pins - Inch / Metric
( 16 products )
View Details Button
Displaying 1 to 12 (of 12 products) Result Pages:  1

Typical properties of this Arc Weld Pin:

Material

Your choice of Mild Steel or Stainless Steel

Available Pin Diameters

  • Inch: 1/4", 5/16”, 3/8”, 1/2", 5/8”, 3/4"
  • Metric: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm

Note: A wide variety of pin body lengths also available.

Application notes

The arc weld pin is attached using standard arc welding techniques. A weld gun lifts the weld pin away from the base metal surface while a power source generates a controlled electric arc. The electric arc melts the end of the pin as well as a portion of the base metal. The weld pin is then forced into the molten metal. This process creates a high-quality weld joint. During the arc welding process, a small portion of the weld pin will be burned away. Therefore, the post-weld pin length will be slightly shorter than the pre-weld length. This fact should be taken into consideration when selecting an appropriate pin length.

The arc weld pin has a variety of industrial applications. Its sturdy design and ease-of-use make it a popular choice among the industrial design community.

We invite you to take advantage of our broad range of industry experience and expertise. We will take the time to answer all your questions in full and provide you with the guidance necessary to facilitate your choice of the appropriate industrial fastener for your specific application. Excellent customer service, a broad product offering, and competitive pricing are just a few of the tangible benefits of doing business with JHP Fasteners.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
