Full Thread Arc Weld Studs – Inch / Metric

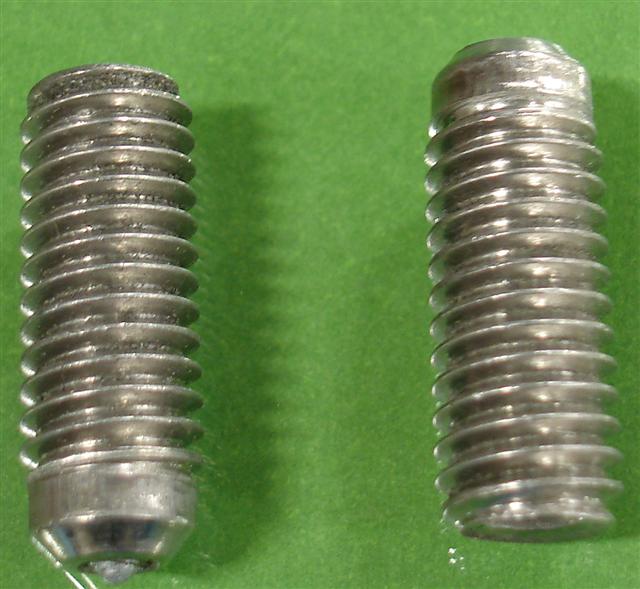

The Full Thread Arc Weld Stud features external threads that run the entire length of the weld stud body. These studs are welded using a standard arc weld process. An arc weld process is generally used in those applications that require welding of larger diameter weld studs to thicker base metals. These studs are flux-loaded at the weld end to facilitate the welding process. These industrial fasteners are available from JHP Fasteners in a variety of materials, dimensions, and thread sizes (inch and metric).

Product Name
1/2-13 Full Thread Arc Weld Studs - Inch / Metric
( 29 products )
View Details Button
1/4-20 Full Thread Arc Weld Studs - Inch / Metric
( 28 products )
View Details Button
10-24 Full Thread Arc Weld Studs - Inch / Metric
( 28 products )
View Details Button
10-32 Full Thread Arc Weld Studs - Inch / Metric
( 28 products )
View Details Button
3/4-10 Full Thread Arc Weld Studs - Inch / Metric
( 28 products )
View Details Button
3/8-16 Full Thread Arc Weld Studs - Inch / Metric
( 28 products )
View Details Button
5/16-18 Full Thread Arc Weld Studs - Inch / Metric
( 28 products )
View Details Button
5/8-11 Full Thread Arc Weld Studs - Inch / Metric
( 27 products )
View Details Button
Displaying 1 to 8 (of 8 products) Result Pages:  1

Typical Properties of the Full Thread Arc Weld Stud

Material

Your choice of Mild Steel or Stainless Steel

Available Thread Sizes

  • Inch Metric (mm)
    • #10-32 M5
    • #10-24 M6
    • 1/4-20 M8
    • 5/16-18 M10
    • 3/8-16 M12
    • 1/2-13 M16
    • 5/8-11
    • 3/4-10

Note: A wide variety of stud body lengths and diameters also available.

Application notes

The full thread arc weld stud is attached using standard arc welding techniques. A weld gun lifts the weld stud away from the base metal surface while a power source generates a controlled electric arc. The electric arc melts the end of the stud as well as a portion of the base metal. The weld stud is then thrust into the molten metal. This process creates a high-quality weld joint. During the arc welding process, a small portion of the weld stud will be burned away. Therefore, the post-weld stud length will be slightly shorter than the pre-weld length. This fact should be taken into consideration when selecting an appropriate stud length.

The full thread arc weld stud is an ideal choice for those applications that require a sturdy attachment of a weld stud to a thick base metal. The full thread body enhances the overall application flexibility of this weld stud.

We invite you to take advantage of our broad range of industry experience and expertise. We will take the time to answer all your questions in full and provide you with the guidance necessary to facilitate your choice of the appropriate industrial fastener for your specific application. Excellent customer service, a broad product offering, and competitive pricing are just a few of the tangible benefits of doing business with JHP Fasteners.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
