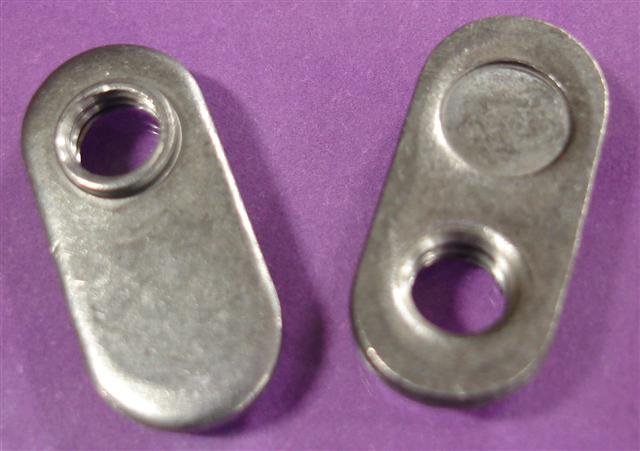

Single Tab Weld Nut with Target

This Tab Spot Weld Nut is a good choice when space limitation is a consideration. This weld nut has a narrow body that is well suited for use in confined areas. It also features a precision pilot that is countersunk to enable easy entry of a mating screw. These industrial fasteners are offered by JHP Fasteners in a variety of dimensions and thread sizes (inch and metric).

Product Name
1/4-20 Single Tab Weld Nut with Target
( 1 product )
View Details Button
10-24 Single Tab Weld Nut with Target
( 1 product )
View Details Button
10-32 Single Tab Weld Nut with Target
( 1 product )
View Details Button
3/8-16 Single Tab Weld Nut with Target
( 1 product )
View Details Button
5/16-18 Single Tab Weld Nut with Target
( 1 product )
View Details Button
6-32 Single Tab Weld Nut with Target
( 1 product )
View Details Button
8-32 Single Tab Weld Nut with Target
( 1 product )
View Details Button
M3.5 x 0.60 Single Tab Weld Nut with Target
( 1 product )
View Details Button
M4 x 0.70 Single Tab Weld Nut with Target
( 1 product )
View Details Button
M5 x 0.80 Single Tab Weld Nut with Target
( 1 product )
View Details Button
M6 x 1.00 Single Tab Weld Nut with Target
( 1 product )
View Details Button
M8 x 1.25 Single Tab Weld Nut with Target
( 1 product )
View Details Button
Displaying 1 to 12 (of 12 products) Result Pages:  1

Typical Properties of the Tab Spot Weld Nut

Material

C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)

Threads

  • Inch: Unified Standard Class 2B ASME B 1.1-2003
  • Metric: ASME B 1.13M-2005

Available thread size:

  • Inch Metric
    • #6-32 M3.5 x 0.6
    • #8-32 M4 x 0.7
    • #10-24 M5 x 0.8
    • #10-32 M6 x 1.0
    • 1/4-20 M8 x 1.25
    • 5/16-18
    • 3/8-16

Note: A variety of thicknesses, widths, and lengths also available.

Application notes:

This Tab Spot Weld Nut’s recessed electrode guide greatly facilitates welding to thin materials. It is ideal for use when a self-locating spot-weld nut is needed. This weld nut can be used in restricted areas such as corners, channels and other confined areas. No custom tooling or equipment is required.

This Tab Spot Weld Nut is extremely versatile and will provide a robust spot weld connection in a wide range of applications and conditions. If your product or application has fastener space constraints, you should consider use of this weld nut.

JHP Fasteners offers expert consultation on the use of these types of industrial fasteners. If you are unsure as to which type of weld nut would best serve your needs, we can help guide you in the right direction. Once you make a product selection, you will find that our pricing and overall customer service are second-to-none. Our long list of repeat customers is evidence of our commitment to total customer satisfaction.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
