Right Angle Spade Weld Pin

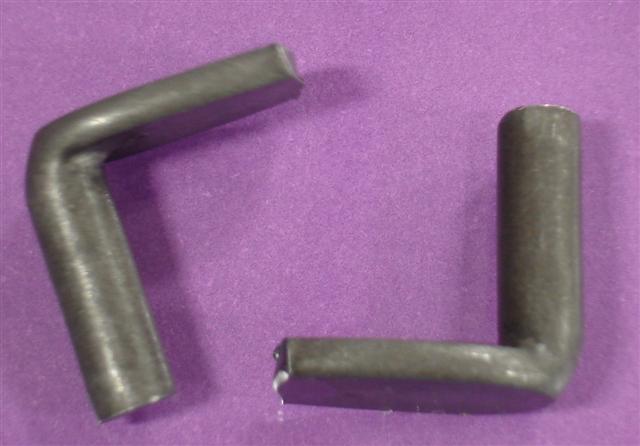

This Weld Pin has a narrow weld spade that is positioned at a right angle to the body, making it well suited for use as a bearing surface or a hinge pin. The narrow spade also makes this weld pin a common choice for applications that require a pin to be spot welded within a narrow channel or confined space. These industrial fasteners are available from JHP Fasteners in a variety of materials and dimensions.

Product Name
0.117 Right Angle Spade Weld Pin
( 1 product )
View Details Button
0.119 Right Angle Spade Weld Pin
( 2 products )
View Details Button
0.144 Right Angle Spade Weld Pin
( 9 products )
View Details Button
0.163 Right Angle Spade Weld Pin
( 2 products )
View Details Button
0.19 Right Angle Spade Weld Pin
( 10 products )
View Details Button
0.218 Right Angle Spade Weld Pin
( 8 products )
View Details Button
0.25 Right Angle Spade Weld Pin
( 8 products )
View Details Button
0.277 Right Angle Spade Weld Pin
( 4 products )
View Details Button
Displaying 1 to 8 (of 8 products) Result Pages:  1

Typical properties of the Weld Pin

Materials

  • C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
  • 18-8 Stainless Steel (passivated finish)

Overall Length

Available in 3/8”, 1/2", 5/8”, 3/4", 1”

Pin Body Diameter

Available in 0.117”, 0.144”, 0.163”, 0.190”, 0.218”, 0.250”, 0.277”

Note: A variety of other dimensional characteristics also available.

Application notes

This weld pin can be spot welded using standard spot welding equipment. No special tooling or fixturing is required. The right-angle position of the weld spade makes this weld pin well suited for use as a bearing surface or a hinge pin. The narrow spade can be welded into narrow channels as well as other confined spaces.

For applications that require a robust weld pin that can serve as a robust bearing surface or hinge pin, this spot weld pin is an excellent, and popular, choice. Its sturdy design has been incorporated into a wide variety of industrial applications.

JHP Fasteners has 40 years of experience in the industrial fastener business. We carry a full suite of industrial fastener products and pride ourselves on our ability to stay abreast of all industry trends and developments. We take pride in our commitment to complete customer satisfaction.

When you choose JHP Fasteners, you will receive……

  • Competitive pricing
  • Fast and reliable delivery performance
  • Expert consultation
  • Friendly customer service

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
