Flat Spade Weld Pin

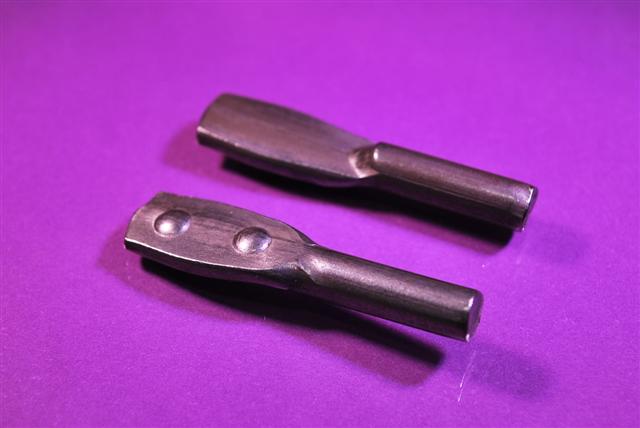

This Weld Pin is ideally suited for use on the end or edge of a metal sheet. It features two precision weld projections positioned on a flat, offset, spade surface. The two projections provide a strong weld that will not disfigure the exterior surface of the sheet material. This weld pin will function well as a hinge pin as well as a pivot point. These industrial fasteners are available from Monroe-JHP Fasteners at very competitive pricing.



Typical Properties of the Weld Pin

Material

C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)

Spade Thickness

0.094”

Body Diameter

0.215”

Overall Pin Length

1.500”

Application notes

This weld pin can be spot welded using standard spot welding equipment. No special tooling or fixturing is required. This weld pin is ideally suited for use on the end or edge of a metal sheet. When properly welded, there will be no marring of the surface of the sheet material.

For applications that require a robust weld pin that can be spot welded on the end or edge of a metal sheet, this spot weld pin is an excellent choice. Its robust design characteristics make it a good choice for those applications that require a pin that will serve as a hinge or a pivot point.
