Right Angle Projection Weld Studs

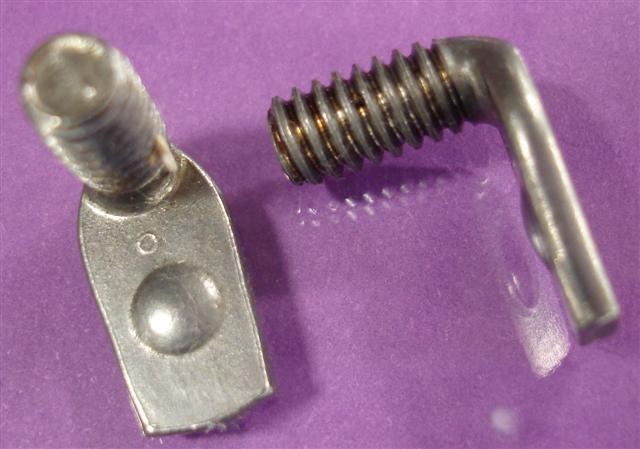

This Projection Weld Screw features an extended spade that is positioned at a right angle to the threads. The spade is narrow in shape, allowing it to be used within narrow channels and corners. It is equipped with one precision weld projection designed to produce a strong and reliable weld. These industrial fasteners are available from JHP Fasteners in a variety of dimensions and thread sizes.

Product Name
1/4-20 Right Angle Projection Weld Studs
( 1 product )
View Details Button
5/16-18 Right Angle Projection Weld Studs
( 1 product )
View Details Button
Displaying 1 to 2 (of 2 products) Result Pages:  1

Typical Properties of this Projection Weld Screw

Material

C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
Threads: Unified Standard Class 2A ASME B 1.1-2003

Available thread sizes

  • 1/4-20
  • 5/16-18

Note: A variety of dimensional characteristics also available (thread length, spade thickness, etc)

Application notes

This weld screw can be used in narrow channels and other confined spaces. It can be used in applications that require the screw’s threads to be offset from the surface. Positioning of the weld screw is quick and easy and requires no special tooling or fixturing.

For applications that require screw threads to be offset from the mating surface, this particular weld screw is an ideal choice. It is also a good choice in those cases where a robust weld must be achieved within a restricted space. This weld screw will provide a strong and reliable connection in a wide variety of applications.

JHP Fasteners has 40 years of experience in the industrial fastener business. We carry a full suite of industrial fastener products and pride ourselves on our ability to stay abreast of all industry trends and developments.

We offer our customers….

  • Competitive pricing
  • Fast and reliable delivery performance
  • Expert consultation
  • Friendly customer service

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
