Home » Self-Clinching Fasteners » Self-Clinching Nuts » Self Clinching Nylon Insert Lock Nuts

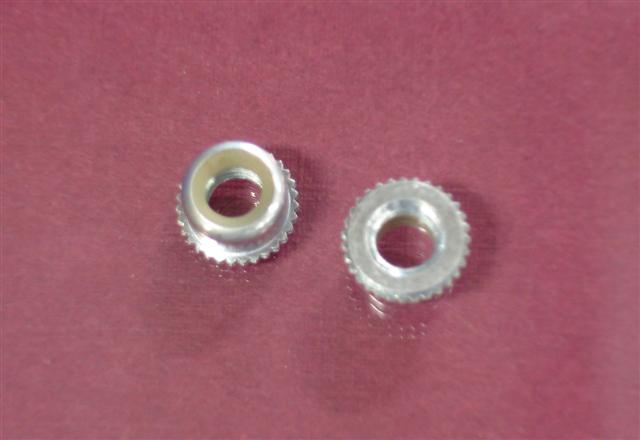

Self Clinching Nylon Insert Lock Nuts

If your product or project requires an industrial fastener that combines the benefits of self-clinching mounting with a reusable, non-metallic thread locking element, then the self-clinching top collar lock nut would be an ideal choice. JHP Fasteners offers self-clinching top collar lock nuts in a wide variety of thread sizes. If your specific application requires a metric fastener, we carry these self-clinching nuts in a wide range of metric sizes. The self-clinching top collar lock nut is available in 300 series stainless steel as well as heat-treated carbon steel.

Product Name
10-32 Nylon Insert Lock Nuts
( 2 products )
View Details Button
4-40 Nylon Insert Lock Nuts
( 2 products )
View Details Button
6-32 Nylon Insert Lock Nuts
( 2 products )
View Details Button
8-32 Nylon Insert Lock Nuts
( 2 products )
View Details Button
M3 x 0.50 Nylon Insert Lock Nuts
( 2 products )
View Details Button
M4 x 0.70 Nylon Insert Lock Nuts
( 2 products )
View Details Button
M5 x 0.80 Nylon Insert Lock Nuts
( 2 products )
View Details Button
Displaying 1 to 7 (of 7 products) Result Pages:  1



Specific information regarding the self-clinching top collar lock nut:

  • Thread: Class 2B, MIL-S-7742; (6H ISO Metric).
  • Suitable for Use in: Material with Rockwell Hardness of B-70 or less.

Installation Tips:

  • Thin sheet material – Can be installed in sheet thicknesses of .040” to .059” ( to ) as long as the nut is partially installed in the sheet. The nuts knurled collar must be raised above the sheet by the difference in thickness from .059” ().
  • Thick Sheets – If the nut is installed in a sheet that is greater than .070” () in thickness, the knurled collar may crack if the mating screw is tightened above the maximum specified torque limit.

As with all self-clinching nuts, the top collar lock nut is installed into a round hole that has either been drilled or punched. The nut is inserted via application of a squeezing force, which is easily accomplished via use of any parallel press device. They allow for a rapid assembly process, thereby increasing process throughput and reducing assembly costs.

JHP Fasteners has vast experience and expertise at your disposal. We are experts in the field of industrial fasteners and can provide you with guidance that will be both accurate and meaningful. Tell us a little about your product or project and we will be able to assist you in the choice of the most appropriate industrial fastener to meet your specific requirements. Contact us today for consultation and/or to place your order!
