Spot Weld Screws – 90 Degree Tab

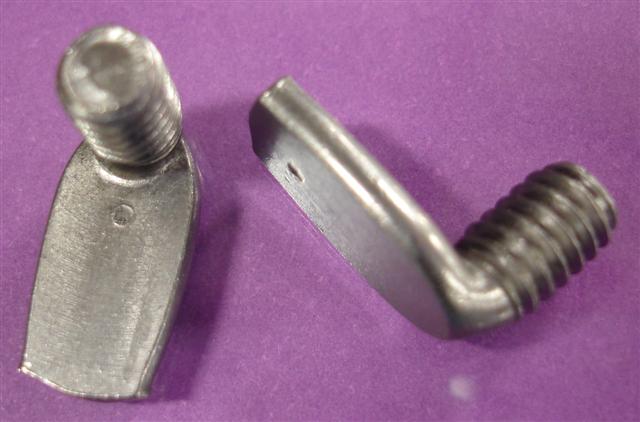

This Spot Weld Screw features a narrow flat spade positioned at a right angle to the screw’s threads. This design feature allows the weld screw to be welded to or through a metal surface. The narrow spade design also allows the screw to be effectively welded within narrow channels and other confined spaces. These industrial fasteners are available from JHP Fasteners in a variety of materials, dimensions and thread sizes (inch and metric).

Typical properties of this Spot Weld Screw:

Material: Your choice of:

C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
18-8 Stainless Steel (passivated finish)

Threads:

Inch: Unified Standard Class, 2A ASME B 1.1-2003
Metric: ASME B 1.13-2005

Available thread sizes:

Inch Metric

#6-32 M3.5 x 0.6
#8-32 M4 x 0.7
#10-24 M5 x 0.8
#10-32 M6 x 1.0
1/4-20 M8 x 1.25
5/16-18 M10 x 1.5
3/8-16

Note: A variety of dimensional characteristics also available (lengths, heights, etc)

Application notes:
The spade head on this spot weld screw can be welded to, or through, a metal surface. The spade will accommodate a variety of electrode tip sizes and can be welded using welding equipment used in any standard welding process. No special tooling or fixturing is required. This weld screw is ideally suited for use within confined spaces.

For applications that require a robust weld screw that can be effectively attached within a confined space, this unique spot weld screw is an excellent choice. The fact that it can be welded to, or through, a metal surface enhances its overall versatility.

JHP Fasteners has 40 years of experience in the industrial fastener business. We carry a full suite of industrial fastener products and pride ourselves on our ability to stay abreast of all industry trends and developments.

We offer our customers….

Competitive pricing
Fast and reliable delivery performance
Expert consultation
Friendly customer service
