3 Projection Hex Weld Nut - Short & Long Pilot

Product Name+
1/2-13 3 Projection Hex Weld Nut - Short & Long Pilot
( 3 products )
1/2-13 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
1/4-20 3 Projection Hex Weld Nut - Short & Long Pilot
( 3 products )
1/4-20 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
1/4-28 3 Projection Hex Weld Nut - Short & Long Pilot
( 1 product )
1/4-28 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
10-24 3 Projection Hex Weld Nut - Short
( 1 product )
10-24 3 Projection Hex Weld Nut - Short
View Details Button
10-32 3 Projection Hex Weld Nut - Short
( 1 product )
10-32 3 Projection Hex Weld Nut - Short
View Details Button
3/4-10 3 Projection Hex Weld Nut - Short & Long Pilot
( 1 product )
3/4-10 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
3/8-16 3 Projection Hex Weld Nut - Short & Long Pilot
( 3 products )
3/8-16 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
3/8-24 3 Projection Hex Weld Nut - Short & Long Pilot
( 2 products )
3/8-24 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
5/16-18 3 Projection Hex Weld Nut - Short & Long Pilot
( 3 products )
5/16-18 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
5/8-11 3 Projection Hex Weld Nut - Short & Long Pilot
( 2 products )
5/8-11 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
7/16-14 3 Projection Hex Weld Nut - Short & Long Pilot
( 2 products )
7/16-14 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
7/16-20 3 Projection Hex Weld Nut - Short & Long Pilot
( 2 products )
7/16-20 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
8-32 3 Projection Hex Weld Nut - Short
( 1 product )
8-32 3 Projection Hex Weld Nut - Short
View Details Button
M10 x 1.50 3 Projection Hex Weld Nut - Short & Long Pilot
( 2 products )
M10 x 1.50 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
M12 x 1.75 3 Projection Hex Weld Nut - Short & Long Pilot
( 2 products )
M12 x 1.75 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
M16 x 2.0 3 Projection Hex Weld Nut - Short & Long Pilot
( 1 product )
M16 x 2.0 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
M5 x 0.8 3 Projection Hex Weld Nut - Short & Long Pilot
( 1 product )
M5 x 0.8  3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
M6 x 1.00 3 Projection Hex Weld Nut - Short & Long Pilot
( 3 products )
M6 x 1.00  3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
M8 x 1.25 3 Projection Hex Weld Nut - Short & Long Pilot
( 2 products )
M8 x 1.25 3 Projection Hex Weld Nut - Short & Long Pilot
View Details Button
Displaying 1 to 19 (of 19 products) Result Pages:  1

Hex Weld Nuts – Three Projection

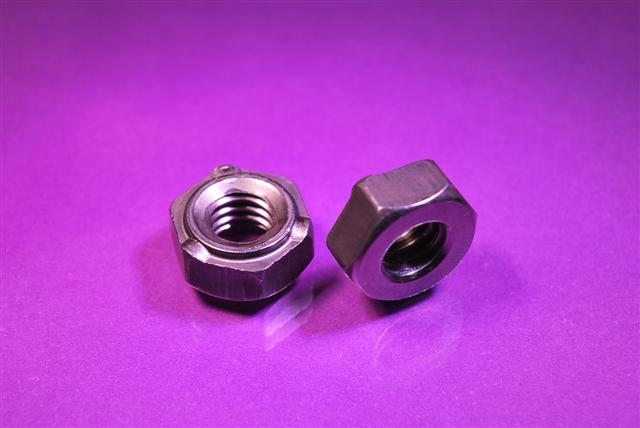

This Projection Weld Nut features three uniform weld projections that provide solid contact with the weld surface. The projections help to accommodate weld surfaces that may not be perfectly flat. It also features a precision pilot that enables accurate location and threading of mated components. These industrial fasteners are offered by JHP Fasteners in a wide assortment of materials, dimensions, and thread sizes (inch and metric).

Typical properties of this Projection Weld Nut:

Material: Your choice of:

  • C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
  • Austenitic Stainless Steel (Passivated finish)

Threads: Per the following:

  • Inch: Unified Standard Class 2B ASME B 1.1-2003
  • Metric: ASME B 1.13M-2005

Available thread sizes (inch):

  • Low Carbon Steel
  • Short Pilot Long Pilot
    • #8-32 1/4-20
    • #10-24 5/16-18
    • #10-32 5/16-24
    • 1/4-20 3/8-16
    • 1/4-28 3/8-24
    • 5/16-18 7/16-14
    • 3/8-16 7/16-20
    • 3/8-24 1/2-13
    • 7/16-24 5/8-11
    • 7/16-20
    • 1/2-13
    • 5/8-11
    • 3/4-10

Note: A variety of widths and thicknesses also available.

Available thread sizes (metric)

  • Low Carbon Steel
  • Short Pilot Long Pilot
    • M5 x 0.8 M6 x 1.0
    • M6 x 1.0 M8 x 1.25
    • M8 x 1.25 M10 x 1.5
    • M10 x 1.5 M12 x 1.75
    • M12 x 1.75
    • M16 x 2.0

Note: A variety of widths and thicknesses also available.

Note: Austenitic Stainless Steel nuts available in 1/4-20, 5/16-18, 3/8-16, 1/2-13 thread sizes.

Application notes:
The three uniform weld projections provide solid contact with the weld surface and help accommodate weld surfaces that may not be perfectly flat. Location and threading of mated components is assisted by use of the weld nut’s precision pilot. The pilot also prevents the nut from slipping off center during the welding operation.

This Projection Weld Nut is extremely versatile and will provide a robust spot weld connection in a wide range of applications and conditions. This weld nut is easy to use and works well in a wide range of production environments.

JHP Fasteners offers expert consultation on the use of these types of industrial fasteners. Our 40 years of active industry experience allows us to provide you with a full range of services. We provide all of our customers with competitive pricing, reliable delivery times, and an efficient shopping/buying experience. Your complete satisfaction is our objective.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
