Weld Screws & Studs

Weld Studs are available in a variety of materials, types, and sizes. These are available as inch or metric fasteners. Weld studs can be used in both light and heavy duty applications.

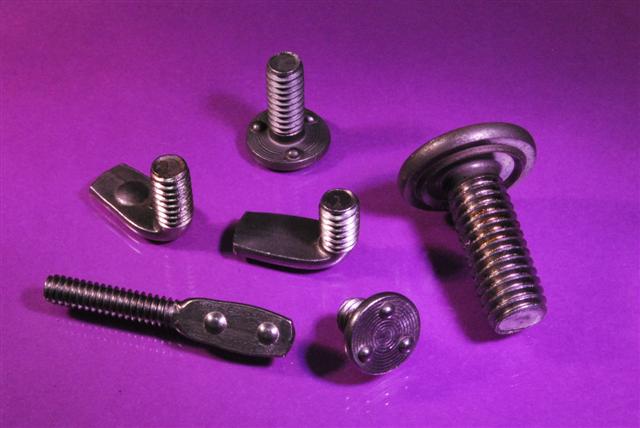

Weld Stud Configurations

• Spot Weld Studs
• Tab Weld Studs
• Projection Weld Studs

Weld studs are generally made from steel, though aluminum and stainless steel variations are manufactured as well. They are made as both threaded screws and unthreaded pins depending on your application needs. Tab and spot weld studs are used in lighter duty or restricted space applications whereas projection weld studs are ideal for heavy duty applications.

Projection Weld Studs
Projection weld studs provide a greater weld area and can be heat treated for special applications. They are available with the weld projections under the head or with the projections on top of the head. The more common under the head weld studs are for applications where the stud is passed through the hole. Projections can be around the top of the head in order to weld the stud directly to the material, leaving the backside of the base material untouched.

Spot & Tab Weld Studs
Spot and tab weld screws have a tab that is welded to the base material. They are available with or without projections. These fasteners can be used in applications where the threaded stud or unthreaded pin stand 90 degrees to the mating material or where they are needed to extend beyond the edge of the material.

These inch and metric fasteners are used in a variety of industries including automotive, appliance, electronics, and many others. Order projection, spot, or tab weld studs from JHP Fasteners today! Contact us for more information; we’ll help you find the right fastener to get the job done.
