Flanged CD Weld Pins – Inch / Metric

Product Name+
0.125 Flanged CD Weld Pins - Inch / Metric
( 42 products )
0.125 Flanged CD Weld Pins - Inch / Metric
View Details Button
0.1875 Flanged CD Weld Pins - Inch / Metric
( 42 products )
0.1875 Flanged CD Weld Pins - Inch / Metric
View Details Button
0.217 Flanged CD Weld Pins - Inch / Metric
( 42 products )
0.217 Flanged CD Weld Pins - Inch / Metric
View Details Button
0.250 Flanged CD Weld Pins - Inch / Metric
( 42 products )
0.250 Flanged CD Weld Pins - Inch / Metric
View Details Button
0.3125 Flanged CD Weld Pins - Inch / Metric
( 42 products )
0.3125 Flanged CD Weld Pins - Inch / Metric
View Details Button
0.375 Flanged CD Weld Pins - Inch / Metric
( 28 products )
0.375 Flanged CD Weld Pins - Inch / Metric
View Details Button
M10 Flanged CD Weld Pins - Inch / Metric
( 28 products )
M10 Flanged CD Weld Pins - Inch / Metric
View Details Button
M3 Flanged CD Weld Pins - Inch / Metric
( 42 products )
M3 Flanged CD Weld Pins - Inch / Metric
View Details Button
M4 Flanged CD Weld Pins - Inch / Metric
( 42 products )
M4 Flanged CD Weld Pins - Inch / Metric
View Details Button
M5 Flanged CD Weld Pins - Inch / Metric
( 42 products )
M5 Flanged CD Weld Pins - Inch / Metric
View Details Button
M6 Flanged CD Weld Pins - Inch / Metric
( 42 products )
M6 Flanged CD Weld Pins - Inch / Metric
View Details Button
M8 Flanged CD Weld Pins - Inch / Metric
( 42 products )
M8 Flanged CD Weld Pins - Inch / Metric
View Details Button
Displaying 1 to 12 (of 12 products) Result Pages:  1

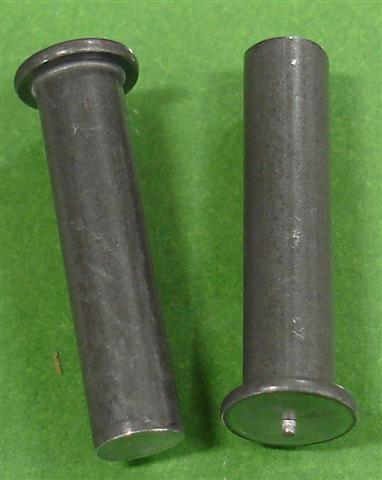

Flanged CD Weld Pin

These capacitor discharge (CD) Flanged Weld Pins are specifically designed for welding to thin sheet materials and are often used as hard stops and/or location points. For applications that require a weld pin with an internal thread, these pins can be tapped to provide the required thread characteristics. The flange provides greater stability as well as a larger bond surface that works to increase the strength and reliability of the weld. These industrial fasteners are available from JHP Fasteners in a variety of materials and dimensions (inch and metric).

Typical properties of this Flanged Weld Pin:

Material: Your choice of:

  • Mild Steel
  • Stainless Steel
  • Aluminum Alloy

Available Pin Body Diameters:

  • Inch Metric (mm)
    • 1/8” 3.0
    • 5/32” 4.0
    • 3/16” 5.0
    • 0.215” 6.0
    • 1/4" 8.0
    • 5/16” 10.0
    • 3/8”

Note: A wide variety of flange diameters and pin lengths also available.

Application notes:
When properly welded, using the capacitance discharge method, there will be no reverse side marking. This is due to the minimal thermal impact on the material during the welding process. To achieve maximum weld performance the welding surface must be clean (no paint or coatings) and flat. Only 110v power is required for the welding process, and these flanged weld pins can be attached using standard CD welding equipment. The resulting weld will be stronger than the surrounding sheet material.

For applications that require a flanged weld pin that is well suited for capacitance discharge welding, and that can be welded to thin sheet metal materials, this weld pin would be an excellent choice. This weld pin is a popular choice for applications that require a weld pin to serve the function of a hard stop and/or location point.

We invite you to take advantage of our broad range of industry experience and expertise. We will take the time to answer all your questions in full and provide you with the guidance necessary to allow you to make informed purchase decisions. Once you make a product selection, JHP Fasteners will provide you with competitive pricing and outstanding delivery performance.

Contact us for any industrial fastener requirement you may have. We will work hard to win, and retain, your business!
