Rectangle Flange with 4 Projections

Click to enlarge

Weld Nuts with Rectangular Flange

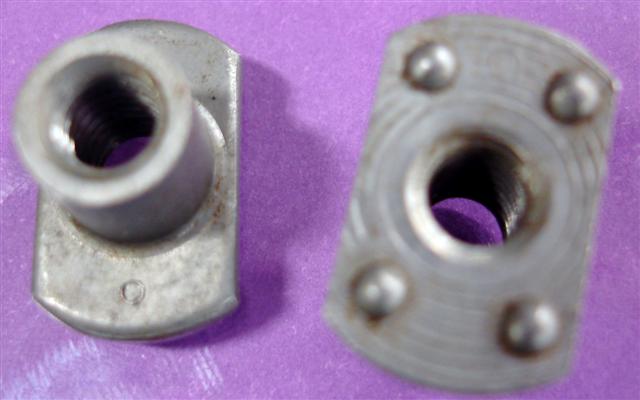

This Flanged Weld Nut features a “T” shape which allows the nut to be used in narrow channels and other confined spaces. This weld nut has four precision weld projections located on the top of the flange to provide a weld that is strong and well balanced. These industrial fasteners are available from JHP Fasteners in a variety of materials, dimensions and thread sizes.

Typical properties of this Flanged Weld Nut:

Material: Your choice of:

C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
18-8 Stainless Steel (passivated finish)

Threads: Unified Standard Class 2B ASME B 1.1-2003

Available thread sizes:

#6-32
#8-32
#10-24
#10-32
1/4-20

Note: A variety of dimensional characteristics also available.

Application notes:
This weld nut can be used in narrow channels and other confined spaces. Four symmetrical weld projections located on the top of the flange provide exceptional weld balance. Hole preparation is not required since the nut is welded directly to (not through) the surface of the corresponding sheet material.

For applications that require a robust weld that can be applied directly to the sheet material, this particular flanged weld nut is an excellent choice. It is also a good choice in those cases where confined spaces are an issue. Its unique design characteristics provide welds that are strong, well balanced, and durable.

JHP Fasteners offers expert consultation on the use of these types of industrial fasteners. If you have technical questions, we have the expertise necessary to provide you with the appropriate answers. We will provide you with the level of consultation necessary to ensure that you select the industrial fastener that is best suited for your specific requirement.
