Auto-Sert Hardware Insertion

Self-Clinching Fastener Insertion Equipment

These fastener insertion machines are ideal for high-volume operations that require a robust mechanism for installation of self-clinching fasteners. These machines provide significant benefits in terms of process speed, product quality, and cost reduction. Their high-quality construction ensures years of dependable service and a low cost of ownership. JHP Fasteners offers a variety of machine types to suit most any type of industrial application.

The following models of self-clinching fastener insertion machines are available:

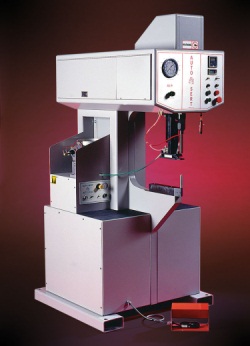

20” Throat Machines, AS-7.5/20 and AS-10/20. 7.5 ton and 10 ton versions. Features and characteristics:

Available with auto-feed
Will work with flat and formed parts of various sizes
Convenient on-board tooling storage
Tonnage Capacity = 350 lbs minimum for both versions. 15,000 lbs

maximum for 7.5 ton version. 20,500 lbs maximum for 10 ton version.

Throat Depth = 20”
Ram Stroke = 6” (152mm)
Electrical = 208/230/415/460/575v, 3-phase, 50/60 Hz
Machine Height = 79” (2007mm)
Machine Width = 36” (914mm)
Machine Depth = 45” (1143mm)
Machine Weight = 1900 lbs (862kgs)

36” Throat Machines, AS-7.5/36 and AS-10/36. 7.5 and 10 ton versions. Features and characteristics:

Available with auto-feed
Can be easily retro-fitted with a moving brush table to improve safety and reduce operator fatigue
Tonnage Capacity = 350 lbs minimum for both versions. 15,000 lbs

maximum for 7.5 ton version. 20,500 lbs maximum for 10 ton version.

Throat Depth = 36”
Ram Stroke = 6” (152mm)
Electrical = 208/230/415/460/575v, 3-phase, 50/60 Hz
Machine Height = 79” (2007mm)
Machine Width = 36” (914mm)
Machine Depth = 64” (1626mm)
Machine Weight = 2500 lbs (1132kgs)

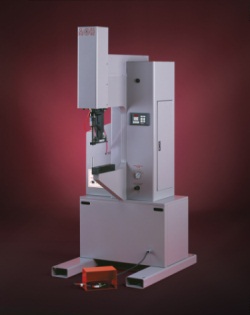

Air Over Hydraulic, AOH-5. Features and characteristics:

Will insert a wide variety of studs, clinch nuts, and standoffs either automatically or manually.
Extremely easy to use, featuring quick-change tooling capability.
Throat Depth = 19”
Easy Access Machine Controls
Low Air Pressure alarm
Redundant Safety System monitored by internal PLC
Tonnage Capacity = 300 lbs (min). 10,000 lbs (max)
Ram Stroke = 4” (102mm)
Electrical = 110v (fused at 5 Amps)
Machine Height = 56” (without stand), 79” (with stand)
Machine Width = 25” (635mm)
Machine Depth = 35” (889mm)
Machine Weight = 1200 lbs

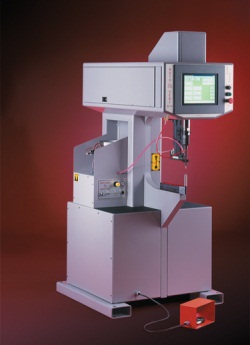

Auto Touch, AS-7.5. Features and characteristics:

PC Based Touch-Screen Controller with 12.1” color screen
Available with auto-feed
3.2 GB Hard Drive with 16 MB Ram and Intel Pentium 166 MHZ Processor
Extensive Software package that allows storage of up to 1,000 jobs
Windows Operating System
Quick Change Tooling
Redundant Safety System monitored by micro-controller
Throat Depth = 20”
Tonnage Capacity = 350 lbs (min). 15,000 lbs (max)
Ram Stroke = 6” (152mm)
Electrical = 208/230/460v, 3-phase
Machine Height = 78” (1981mm)
Machine Width = 36” (914mm)
Machine Depth = 45” (1143mm)
Machine Weight = 1900 lbs

Each of the self-clinching fastener insertion machines listed above will provide years of robust and reliable service within even the most demanding industrial manufacturing environments. Incorporation of these devices into a high-volume production operation will result in significant cost saving and excellent return on investment (ROI).

We invite you to take advantage of our broad range of industry experience and expertise. Based on your input, we will be able to provide you with expert guidance on the choice of the most appropriate type of equipment to meet the requirements of your specific operation. Excellent customer service, a broad product offering, and competitive pricing are just a few of the tangible benefits of doing business with JHP Fasteners.
