Auto-Feed Rivet Tools

Auto-Feed Rivet Insertion Tools are the ideal choice in high-volume production environments where speed and ease-of-use are critical elements of cost control and throughput efficiency. The auto-feed design significantly increases the quantity of rivets that can be installed within a given time period. They also greatly reduce the effects of operator fatigue that can sometimes be associated with use of manual tools. These tools can be successfully deployed in a wide range of industrial applications. JHP Fasteners offers a wide range of auto-feed rivet tools; all of which are constructed from high quality materials to ensure optimum performance and reliability.

JHP Fasteners offers the following types of auto-feed rivet tools:

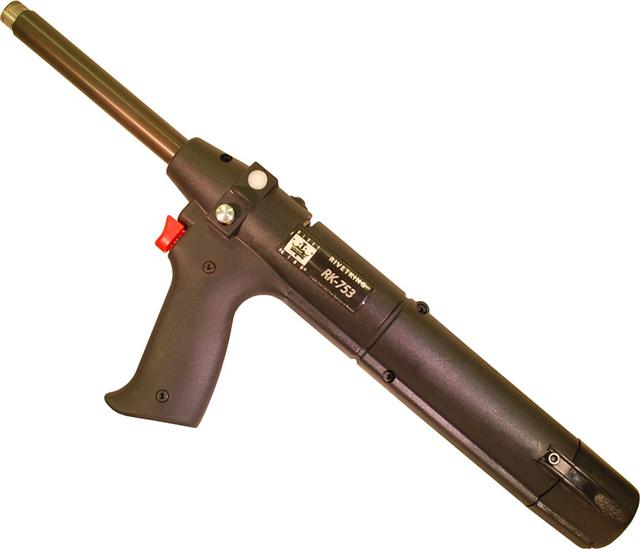

Quick-Riveting – #RK-753: This is a hydra-pneumatic riveter. Key features and characteristics:

Available in several different mounting configurations.
Rivets are supplied in magazine form which rivets are easily loaded into the riveting handle.
Rivet installation speed of up to 1 rivet per second.
Setting capacity: 3/32”, 1/8”, 5/32”, 3/16”
Air supply pressure: 72.5psi – 101.5Psi
Stroke: 1.18” minimum
Weight: 2.4lbs

Auto-Riveting: This type of riveter utilizes a continuous feed system to automatically feed rivets into the riveter. The device is equipped with a mandrel catcher that collects all spent mandrels, preventing them from cluttering the floor of the work area. This tool will accept any standard, specialty, or structural rivet type. Two models of this riveter type are available:

AF-700 – rivet sizes up to 3/16” (max)
AF-900 – rivet sizes up to 1/4" (max). Will also accept structural rivets.

KingSet Riveter: Coming soon!!!

For rivet assembly applications that require speed, accuracy, and labor cost control, the use of an auto-feed rivet insertion tool is the clear choice within many industrial production environments. These tools provide high production capacity along with a clean and ergonomically robust process approach.

We invite you to take advantage of our broad range of industry experience and expertise. Based on your input, we will be able to provide you with expert guidance on the choice of the most appropriate type of tooling to meet the requirements of your specific project or application. Excellent customer service, a broad product offering, and competitive pricing are just a few of the tangible benefits of doing business with JHP Fasteners.
