Weld Pin with 3 Projections Under the Head

Product Name+
0.117 Weld Pin with 3 Projections Under the Head
( 2 products )
0.117 Weld Pin with 3 Projections Under the Head
View Details Button
0.119 Weld Pin with 3 Projections Under the Head
( 3 products )
0.119 Weld Pin with 3 Projections Under the Head
View Details Button
0.144 Weld Pin with 3 Projections Under the Head
( 10 products )
0.144 Weld Pin with 3 Projections Under the Head
View Details Button
0.163 Weld Pin with 3 Projections Under the Head
( 4 products )
0.163 Weld Pin with 3 Projections Under the Head
View Details Button
0.190 Weld Pin with 3 Projections Under the Head
( 14 products )
0.190 Weld Pin with 3 Projections Under the Head
View Details Button
0.218 Weld Pin with 3 Projections Under the Head
( 4 products )
0.218 Weld Pin with 3 Projections Under the Head
View Details Button
0.250 Weld Pin with 3 Projections Under the Head
( 16 products )
0.250 Weld Pin with 3 Projections Under the Head
View Details Button
0.277 Weld Pin with 3 Projections Under the Head
( 2 products )
0.277 Weld Pin with 3 Projections Under the Head
View Details Button
0.335 Weld Pin with 3 Projections Under the Head
( 6 products )
0.335 Weld Pin with 3 Projections Under the Head
View Details Button
0.375 Weld Pin with 3 Projections Under the Head
( 12 products )
0.375 Weld Pin with 3 Projections Under the Head
View Details Button
0.500 Weld Pin with 3 Projections Under the Head
( 4 products )
0.500 Weld Pin with 3 Projections Under the Head
View Details Button
10mm Weld Pin with 3 Projections Under the Head
( 5 products )
10mm Weld Pin with 3 Projections Under the Head
View Details Button
12mm Weld Pin with 3 Projections Under the Head
( 3 products )
12mm Weld Pin with 3 Projections Under the Head
View Details Button
3mm Weld Pin with 3 Projections Under the Head
( 4 products )
3mm Weld Pin with 3 Projections Under the Head
View Details Button
4mm Weld Pin with 3 Projections Under the Head
( 4 products )
4mm Weld Pin with 3 Projections Under the Head
View Details Button
5mm Weld Pin with 3 Projections Under the Head
( 4 products )
5mm Weld Pin with 3 Projections Under the Head
View Details Button
6mm Weld Pin with 3 Projections Under the Head
( 8 products )
6mm Weld Pin with 3 Projections Under the Head
View Details Button
8mm Weld Pin with 3 Projections Under the Head
( 6 products )
8mm Weld Pin with 3 Projections Under the Head
View Details Button
Displaying 1 to 18 (of 18 products) Result Pages:  1

Weld Pin – 3 Projections Under Flange

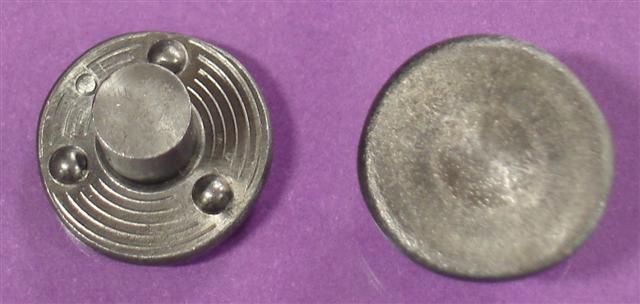

This Weld Pin is an excellent choice for those applications that require a pin that will perform the function of a structural support, hinge pin, or stop pin. It features three precision weld projections, located on the underside of the head, which allow this weld pin to be used on a variety of through-hole applications. The three projections also ensure that the resulting weld will be accurately positioned and well-balanced. These industrial fasteners are available from JHP Fasteners in a variety of materials and dimensions (inch and metric).

Typical properties of this Weld Pin:

Material: Your choice of:

  • C1010 High-Welding Quality, Low Carbon Steel (plain finish unless otherwise specified)
  • 18-8 Stainless Steel (passivated finish)

Length (under head)

  • Inch: Available in 1/4", 5/16”, 3/8”, 1/2", 5/8”, 3/4", 1”, 1 1/8”, 1 1/4", 1 1/2", 2”
  • Metric (mm): Available in 6.0, 8.0, 12.0, 16.0, 20.0, 25.0, 30.0, 40.0, 50.0

Pin Body Diameter:

  • Inch: Available in 0.117”, 0.144”, 0.163”, 0.190”, 0.218”, 0.250”, 0.277”, 0.335”, 0.375”, 0.500”
  • Metric (mm): Available in 3.0, 4.0, 5.0, 6.0, 8.0, 10.0, 12.0

Note: A variety of other dimensional characteristics also available.

Application notes:

This weld pin can be spot welded using standard spot welding equipment. No special tooling or fixturing is required. This weld pin is ideally suited for through-hole applications, and will function as a structural support, hinge pin, or stop pin. When used in a through-hole application, the head of the pin is welded to the metal surface of the component, resulting in a joint that is stronger than its surrounding area.

For applications that require a robust weld pin that can be used in a through-hole application, this spot weld pin is an excellent choice. Its robust design characteristics make it a good choice for those applications that require a pin that will serve as a structural support, hinge pin, or stop pin.
