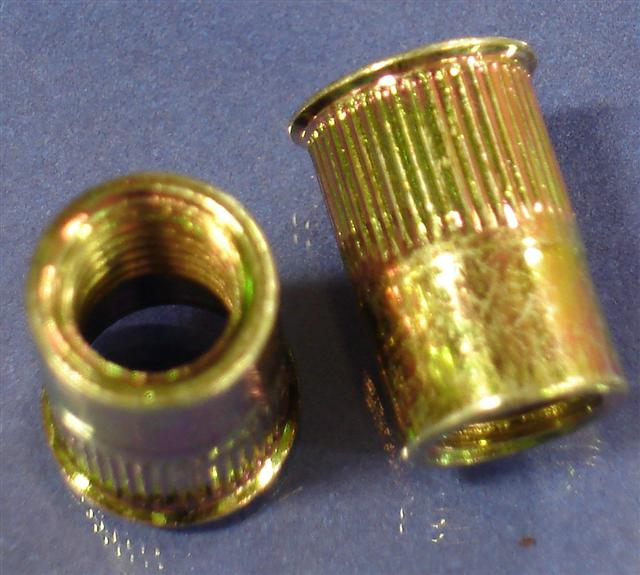

Ribbed Rivet Nut with Small Flange

Click to enlarge

Rivet Nuts – Small Flange, Knurled Metric Body Series

The small flange, knurled, metric body rivet nut is a good choice for use in applications that require a near-flush installation, as well as increased strength and improved containment of round or oversized holes. They are easy to install and require no special tooling or expertise. These industrial fasteners are offered by JHP Fasteners in a variety of materials and thread sizes.

Typical properties of the small flange, knurled, metric body, rivet nut:

Material: Your choice of:

Steel (finished in Zinc Plate-Yellow Dichromatic ASTM B633 Fe/Zn 8, Type II)
Aluminum (plain finish)

Note: Special finishes or materials available upon request.

Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.

Available thread sizes and diameters

Thread-Metric Diameter (mm)

M4 x 0.7 5.95
M5 x 0.8 6.95
M6 x 1.0 8.95
M8 x 1.25 10.95
M10 x 1.5 12.95

Application notes:
The grip range of these rivet nuts can be affected by the type of sheet material being used. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application. Installation of the small flange, knurled, metric body rivet nut is accomplished via use of hand tools that can be pneumatic, hydraulic, or manual. There is no other special equipment required. The knurled body provides extra resistance to spin-out, and the small flange ensures a near-flush installation within its parent material.

These rivet nuts are easy to install and will provide robust performance in a wide range of applications. In mid to high-volume applications, they can reduce assembly cost when compared to use of loose nuts and bolts.

For friendly service, expert consultation, and competitive pricing, JHP Fasteners can be your one-stop shop for industrial fasteners.
