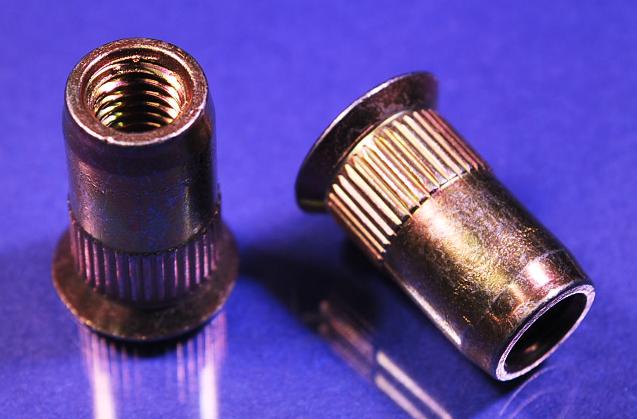

Ribbed Rivet Nut, Countersink

Click to enlarge

Rivet Nuts – Countersunk Head, Knurled, European Style

The countersunk head, knurled, European style rivet nut is an ideal choice for those applications that require a flush installation. The unique knurling increases spinout resistance. They are well suited for use in a variety of sheet materials and require no special tooling for installation. These industrial fasteners are available from JHP Fasteners at very competitive pricing.

Typical properties of the countersunk head, knurled, European style rivet nut:

Material: Steel (finished in Zinc Plate-Yellow Dichromatic DIN 50961 Fe/Zn 8, C).

Note: RoHS compliant Trivalent Plating available upon request.

Hardware compatibility: Compatible with grade 2, grade 5, class 8.8, and class 9.8.

Available thread sizes and diameters Thread-Metric Diameter (mm)

M4 x 0.7 11.5
M5 x 0.8 13.0
M6 x 1.0 17.0
M8 x 1.25 19.0
M10 x 1.5 21.0

Note: A variety of rivet nut lengths also available.

Application notes:
The grip range of these rivet nuts can be affected by the type of sheet material being used. It is recommended that a few test installations be conducted to determine the appropriate grip range for your specific application. Installation of the countersunk head, knurled, European style rivet nut is accomplished via use of pneumatic, hydraulic, or manual hand tools. The installation process is simple, easily controlled, and less labor intensive that other processes associated with nuts and bolts. When properly inserted, the rivet nut head will be flush with the surrounding sheet material.

For flush installation and excellent spin-out resistance, these industrial fasteners will get the job done. They can effectively reduce assembly cost by eliminating processes associated with assembly of nuts and bolts.

For excellent customer service, competitive pricing, and short delivery times, we invite you choose JHP Fasteners as your supplier of industrial fasteners.
